Duplex 2.0mm E2000 Fiber Optic Patch Cables Single Mode On Patch Panel

Brand Name : FOCC

Model Number : FOCC - 028

Certification : RoHS; CE; ISO9001

Place of Origin : China

MOQ : Delivery Length Of MOQ: 10 Pcs, Or Other Customized Quantity.

Payment Terms : T/T, Western Union, T/, MoneyGram

Supply Ability : 5000 Pieces Per Month

Delivery Time : Delivery Time 5 - 7 Working Days

Packaging Details : 80 Pcs Each PE Bag With Outer Top Quality Boxes 42 * 42 * 36 cm Packed

Color : Yellow Or Customized Options

Jacket : PVC

Cable Dimension : 2.0mm

Fiber Type : 9 / 125μm Singlemode

Core : 2

Connector : Duplex E2000

Contact Now


Duplex 2.0mm E2000 Fiber Optic Patch Cables Single Mode On Patch Panel

FOCC this kind of fiber optic patch cables are mainly used on patch panel or for the connection between outlets and terminal equipments. The quality of connectors and fibers are mainly determined by the insertion loss and return loss. We offering duplex E2000-E2000 singlemode fiber optic patch cables, these patch cables are with 9 / 125 singlemode fiber, and connector types in PC, UPC or APC polish are available. It’s fully complied with IEC and Telcordia GR-326 standards; they are good prices, fast delivery and good looking and packing.

Other key words: E2000-E2000 fiber optic patch cords; E2000-E2000 fiber optic jumper.


Features

RoHS Compliant;
Standard & custom configurations;
Meets Telecordia-GR-326-CORE standards;
Easy installation;
Environmentally stable;
Low insertion loss, high return loss;
Ultra low back reflection;
For 3.0mm, 2.4mm, 2.0mm jacket or 900um buffer; .
Single mode fiber: ITU - T G. 652D;
Multi mode fiber: ITU - T G. 651;
Fiber Min. Bending radius: 10D (Static).


Applications

Local Area Networks;
Data Centres;
Campus Networks;
Storage Area Networks.

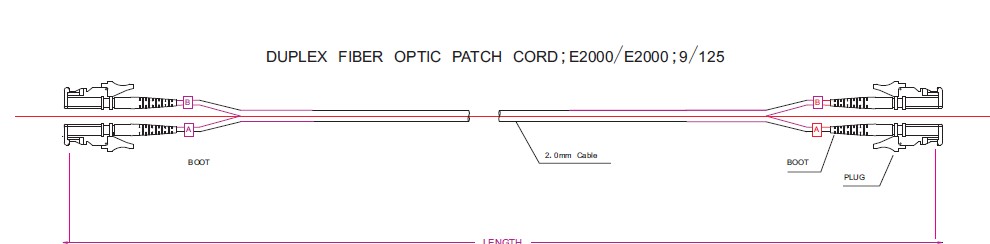

Mechanical Drawing

Duplex 2.0mm E2000 Fiber Optic Patch Cables Single Mode On Patch Panel


Cable Specification



CHARACTERISTICS

UNITS

3mm ROUND DUPLEX

2.4mm ROUND DUPLEX

Strength Member

N/100mm

1000

1000

Operating Temperature

℃

-20 to 60

-20 to 60

Secondary Buffer Diameter

0.μm

900+50

600+50

Minimum Bending Radius

mm

Static

10D

Static

10D

Dynamic

20D

Dynamic

20D





Connector Specification





Polishing Connector (A)

Polishing Connector (B)

Polishing Connector

MPO (MM)

MPO APC

SM

(SC, LC, FC,

MT-RJ)

MM

(SC, LC, FC,

MT-RJ)

Insertion Loss (IL)

< 0.50 dB

< 0.50 dB

< 0.50 dB

< 0.50 dB

Return Loss (RL)

> 30dB

> 60dB

> 50dB

> 35dB

Mating Cycles Delta IL

< 0.2 dB after 500 mating cycles



Fiber Cable Type

Single mode: G652D or G657A;

Multimode: OM1, OM2, OM3;



Cable Color

Yellow for SM G652 and G657A fiber;

Orange for MM OM1 and OM2 fiber;

Aqua for MM OM3 fiber;

Cable Jacket

Ribbon / Fan-out (LSZH / PVC)

Patch Cord Pull-out Force

5N

Operating Temperature

-20°C~+70°C

Storage Temperature

-40°C~+80°C


 Duplex 2.0mm E2000 Fiber Optic Patch Cables Single Mode On Patch Panel


Chromatogram Option


Duplex 2.0mm E2000 Fiber Optic Patch Cables Single Mode On Patch Panel

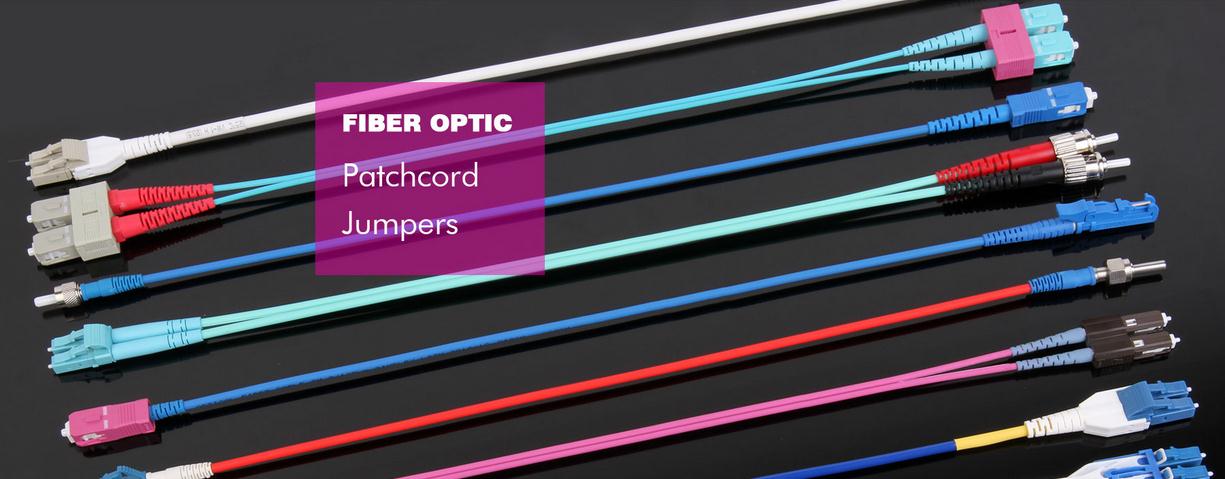

More Options


Duplex 2.0mm E2000 Fiber Optic Patch Cables Single Mode On Patch Panel

Duplex 2.0mm E2000 Fiber Optic Patch Cables Single Mode On Patch Panel


Shipping or Customized Requirements


Duplex 2.0mm E2000 Fiber Optic Patch Cables Single Mode On Patch Panel


FOCC Fiber Patch Cables Guarantee


Duplex 2.0mm E2000 Fiber Optic Patch Cables Single Mode On Patch Panel


Specifications are subject to change, please confirm specific performance characteristics of the product at the time of ordering. All specifications are valid within temperature range of 18ºC to 24ºC unless otherwise noted. For additional specifications please contact focc@fiberfocc.com or calling 0086-755 36933697.
