Ribbon Fiber Optic Connector

Name: Ribbon Fiber Optic Connector
Brand: FOCC
Price: 1 USD

Brand Name : FOCC

Model Number : FOCC - 016

Certification : RoSH, CE, SGS

Place of Origin : China

MOQ : 10 Pieces

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : Delivery Time 5000 Pieces Of Capacity Per Month

Delivery Time : 5 - 7 Working Days

Packaging Details : Box of 12 Individually Bagged Connectors With Optional Termination Aid

Fiber Type : Simplex

Fiber Compatibility : Multimode; Singlemode

Insertion Loss : < 0.2dB

Polishing : PC, UPC, APC

Operating Temperature : - 40°C ~ + 80°C

Certificates : UL, CE, ISO9001, RoHS

Contact Now

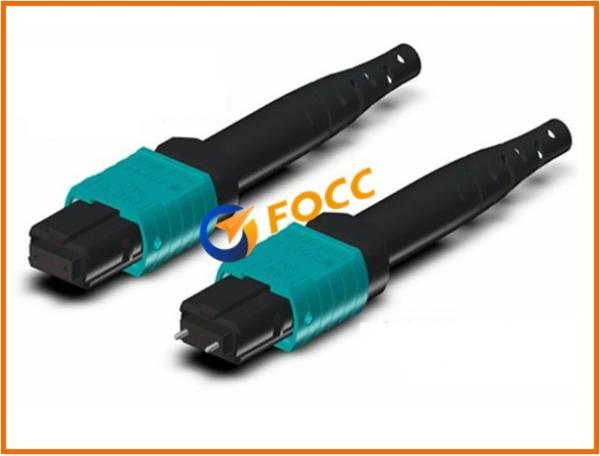

Simplex MPO / MTP Ribbon Fiber Optic Connector / Male And Female Connectors

MTP and MPO are compatible ribbon fiber connectors based on MT ferrule which allow quick and reliable connections for up to 12 fibers. Color-coded housings differentiate singlemode (green) and multimode (beige). Manufactured to IEC Standards 1754-7 and TIA/EIA 604-5 tested to Telecordia GR-1435. Connection integrity is provided by the spring action side latch housing and alignment is achieved with high precision guide pins. FOCC MPO Connector Kits are available in a wide range of types and models, both male and female type connectors. With FOCC, you have a full selection of boot types to choose from in standard and high-grade SM and MM models.

Specifications

MPO/ MTP Connector	Singelmode	Mulitmode
Insertion Loss	≤ 0.20dB	≤ 0.25dB
Return Loss	≥ 50 dB(PC)
	≥ 55 dB(UPC)
	≥ 65dB(APC)
Durability	＜ 0.20 dB typical change, 1000 mating
Operation Temperature	-40 to +80 ℃
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤ 1.0μ	125 μm , Concentricity: ≤ 3μm
	125.5+1/-0μm, Concentricity: ≤ 1.0μ	144 μm , Concentricity: ≤ 3.0μ
	126.0+1/-0μm, Concentricity: ≤ 1.0μ

Applications

LAN & WAN;
CATV fiber optic links;
Network;
Broadband;
Telecommunications.

Features

Compliant to IEC and TIA standards;
RoHS and REACH compliant;
Flammability rating: UL94V-0.

Ribbon Fiber Optic Connector

Ordering Guide

P / N	Connector Type	Fiber Mode	Multi Fiber
MPO / MTP FOCC - 016	MPO	Singlemode (Female / Male) Multimode (Female / Male)	12 core
	MTP	Singlemode (Female / Male)	12 core
		Multimode (Female)	12 core
		Multimode (Male)	12 core

Shipping Via Those Follow Tools

Ribbon Fiber Optic Connector

FOCC Optic Fiber Connector Quality

Ribbon Fiber Optic Connector

Notes:

Prices and specifications are subject to change without notice.
FOCC is not responsible for typographical or photographic errors.

Please contact us at focc@fiberfocc.com for detailed inquiry.
