Quick Assembly SC UPC Multimode Fiber Connectors Aqua Housing 50 125 OM3 10pcs / Bag

Quick Assembly SC UPC Multimode Fiber Connectors Aqua Housing 50 125 OM3 10pcs / Bag

Overview Description

FOCC's Quick Assembly Connector is an easy to install device that does not require a tool or jig. The device is designed for fast termination with a pre-polished connector. These connectors include an epoxy tube which is activated just prior to inserting the freshly cleaved fiber. By simply pressing down with a little pressure, the divider releases so the two agents of epoxy instantaneously mix together. There is no longer a hassle in mixing and wasting unused epoxy.

Features

Transparent body for instant connecting confirmation;
Quick termination;
Pre-polished connector with a fiber stub;
Tool-less, no tools or jig required;
For 900um;
Includes epoxy tube which is activated within connector prior to inserting fiber;
Insertion loss ~0.3dB (.5dB max);
10 pieces per pack.

SC UPC Connector Applications

LAN & WAN;
CATV fiber optic links;
Network;
Broadband;
Telecommunications.

Quick Details

Technical Description

Shipping Via Those Follow Tools

FOCC Optic Fiber Connector Quality  Guarantee

Please call us for custom needs and related fiber optic products.

lc fiber optic connector

fiber optic st connector

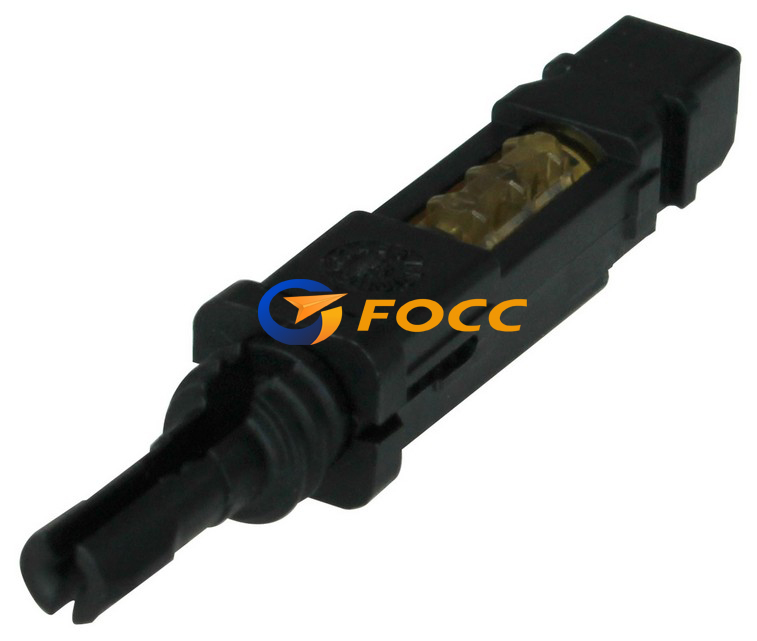

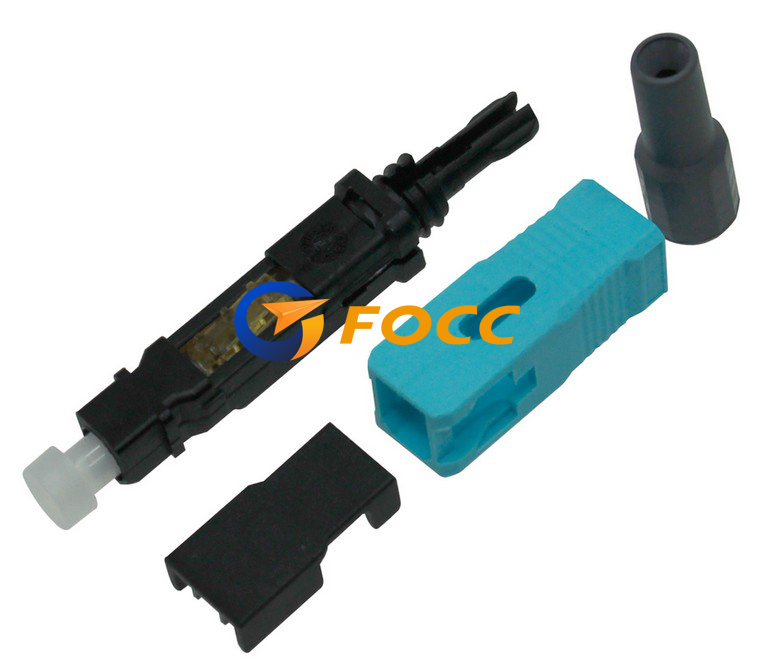

Quick Assembly SC UPC Multimode Fiber Connectors Aqua Housing 50 125 OM3 10pcs / Bag Images
