Simple Footprint ESCON Fiber Optic Connector For Active Device Termination
Our ESCON (Enterprise Systems Connection) is a data connection created by IBM, and is commonly used to connect their mainframe computers to peripheral devices such as disk storage and tape drives. They have two 2.55 mm ceramic ferrules and a robust strain relief design. ESCON is an optical fiber, half-duplex, serial interface. The ESCON connector is very sturdy and robust but also has a large footprint. This was okay at the time, as there were not a lot of connections needed. This connector is an icon as it was the first fiber cable connector widely used in data center architecture.
ESCON Connector Specifications
| Specifications | UPC (Standard) | UPC ( Special ) |
| Insertion Loss | ≤ 0.3dB | ≤ 0.2dB |
| Return Loss | ≥ 50dB | ≤ 0.2dB |
| Operating Temperature | – 40 °C to + 75 °C |
| Durability | ≤ 0.1 dB typical change, 500 matings |
| Available Wavelengths | SM = 1310 & 1550nm, MM = 850nm |
ESCON Connector Applications
CATV, LANs, Telecom, Video;
Active device termination;
Telecommunication networks;
Gigbit applications (ATM, Ethernet).
ESCON Connector Features
High return loss;
Low return loss;
Compact, Simple style interface;
Compliance with TIA/IEA, IEC, RoHS.
Ordering Guide
| Connector | Cable Diameter | Fiber Type | Wavelengths |
| ESCON | 0.9mm 2.0mm 3.0mm | 9/125um (SM) 50/125um (MM) 62.5/125um (MM) | SM=1310 & 1550nm
MM=850nm |
Shipping Via Those Follow Tools
FOCC Optic Fiber Connector Quality
Notes:
Prices and specifications are subject to change without notice.
FOCC is not responsible for typographical or photographic errors.
Please contact us at focc@fiberfocc.com for detailed inquiry.
Product Tags:
|
|

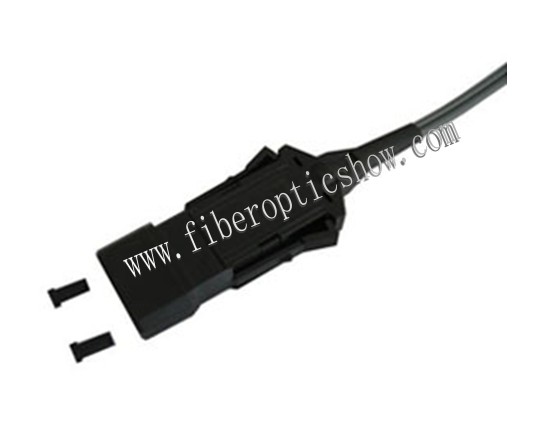

Simple Footprint ESCON Fiber Optic Connector For Active Device Termination Images
|
